Master Wipe® straight strip wipers can be provided in any length, per your specifications, up to eight feet. Standard strips are one inch wide with a preset of minus .015/.020 (A-B). Other widths are available (see chart below). Truss head screws (1/4-20 x 5/8) are furnished at no additional charge upon request. Strip deflectors can be mated to the wiper strips in sizes up to four feet in length.
NOTE: Strip Chip Deflectors available upon request in most sizes. All wipers are minus .030/.040 preset A-B. Alter to suit your application. Screws furnished upon request, N/C (1/4 – 20 x 5/8 truss head). Style 2 lip design available up to 24″ long.

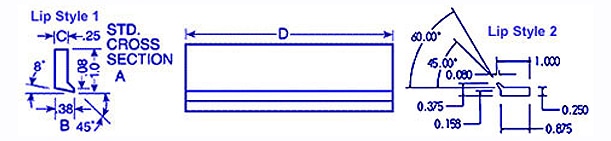

Model No. | A | B | C | D |
|---|---|---|---|---|
| WS-10 x 8' | 1.00 | .38 | .25 | 8' |
| WS-10 x 24" | 1.00 | .38 | .25 | 24" |
| WS-10 x 32" | 1.00 | .38 | .25 | 32" |
| WS-10 x 48" | 1.00 | .38 | .25 | 48" |
| WS-12 | 1.25 | .38 | .25 | 24" |
| WS-15 | 1.50 | .38 | .25 | 24" |
| WS-17 | 1.75 | .38 | .25 | 24" |
| WS-20 | 2.00 | .38 | .25 | 24" |
| WS-25 | 2.50 | .38 | .25 | 24" |
| WS-30 | 3.00 | .38 | .25 | 24" |
| WS-2558 | .50 | .25 | .13 | 8" |
| WS-10-OSC | 1.00 | .38 | .25 | 6" |
