Master Wipe® dovetail wipers are designed for a close fit on dovetail ways. Each dovetail wiper can be used for inside or outside ways. Our dovetail wipers are preset to minus .015/.020 (A-B) with fitting stock added to the ends for your individual needs. Upon request, truss head screws (1/4-20 x 5/8) will be furnished at no additional charge. Master Wipe® dovetail wipers are engineered for maximum endurance and quality.

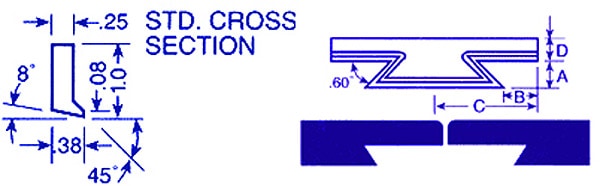

Model No. | A | B | C | D |
|---|---|---|---|---|
| WD-37 | .375 | 1.125 | 2.25 | .375 |
| WD-50 | .5 | 1.6875 | 3.5 | .625 |
| WD-62 | .625 | 2 | 4.25 | .75 |
| WD-75 | .75 | 3 | 6.5 | 1 |
| WD-87 | .875 | 3.125 | 6.5 | 1 |
| WD-100 | 1 | 3.5 | 7 | 1 |
| WD-125 | 1.25 | 4 | 8 | 1 |
| WD-150 | 1.5 | 4.75 | 9.25 | 1 |
| WD-175 | 1.75 | 5.5 | 10.25 | 1 |
| WD-200 | 2 | 5.5 | 10.25 | 1 |
